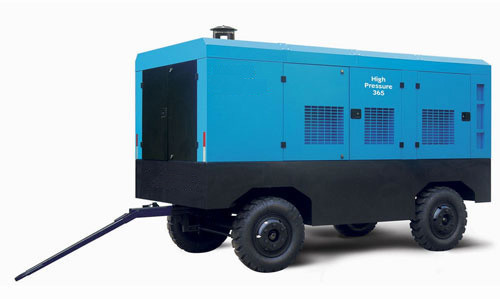

Double Stage Pressure 790Cfm 290Psi Diesel Driven Portable Air Screw compressor
Shanghai Rotorcomp's fully implemented Quality Management and Environmental Management systems in the design and manufacturing of these units fulfill the requirements of ISO 9001 and ISO 14001.
The range has also been tested / given the certificate tested according to ISO 1217.
The most efficient wheeled Diesel compressor, Deutz, Ctapillar, Cummins diesel engine, less10-15% diesel consumption than the traditional model. More flexible in various working conditions for mining, road construction. Sand blasting.
Advantages of Diesel Portable Screw Compressor:
1. Two-stage screw block is patented;
2. Designed for a maximum pressure of 40 bar;
3. Two-stage compression; Deutz, Cummins, and Yuchai World well-known engines
4. SKF bearings, direct drive, no noise gears;
Application of Diesel Portable Screw Compressor:
Shanghai rotorcomp diesel Portable/Mobile screw air compressor is widely used in mines, water conservancy, transportation, shipbuilding, urban construction, energy, industry and other industries.
Diesel Portable Compressor Features:
Diesel portable screw air compressor is widely applied in the industries, such as, road, railway, mine, water conservancy, shipbuilding, urban construction, energy and war industry, etc.
Shanghai Rotorcomp diesel portable screw air compressor is efficient and reliable, with complete varieties. Discharge quantity covers 33m3/min and the discharge pressure is up to 3.5MPa at maximum.
LY19.5/19 is a newly designed compact tandem axle platform that is built tough with heavy gauge, powder coated galvanealed steel.
CUMMINS Portable Compressor Features:
1) HardHat (Optional)
2) Full compliance with 2000/14/EC, the latest European Outdoor Noise Directive
3) Years of experience and ongoing investment
4) Guaranteed free air delivery in accordance with ISO 1217 ed. 3 1996 annex D
5) A combination of a Polyethylene upper body and a chassis with a KTL epoxy layer coating with powder coat paint finish
6) Wide-opening canopy and removable side panels
7) High capacity transparent fuel tank
8) Few moving parts
9) Controls grouped on one panel
10) Engine speed adapts to air demand
11) Compliant with exhaust emission standards 97/68/EC Com III (Europe) & EPA Tier II (U.S.)
12) Long service intervals
13) Complete option list
| Model | Capacity
(m3/min) | Working Pressure
(Mpa) | Diesel Engine
(kw) | Dimension
(mm) |
| LY19.5/19 | 19.5 | 1.9 | CUMMINS 6CTA8.3-C260 | 3980×1800×2650 |
Screw air compressor main spare parts configuration:
| Item | Parts | Brand |
| 1 | Air end | rotorcomp |
| 2 | Intake Valve | rotorcomp |
| 3 | Solenoid Valve | DANFOSS |
| 4 | Temperature sensor | rotorcomp |
| 5 | Pressure sensor | Huba original (from Switzerland) |
| 6 | Engine | Yuchai |
| 7 | Coupling | Germany KTR |
| 8 | Thermostat Valve | Hongxing |
| 9 | PLC | PLOT |
| 10 | Minimal Pressure Valve | rotorcomp |
| 11 | Air filter element | rotorcomp |
| 12 | Oil filter element | rotorcomp |
| 13 | Oil and gas separator element | rotorcomp |
| 14 | Bearing | Sweden SKF (Life 60000 hours) |
